Product features
-
Series controller
-
Voltage regulation
-
Automatic detection of voltage
-
PWM control
-
Multistage charging technology
-
Current compensated load disconnection
-
Automatic load reconnection
-
Temperature compensation
-
Common positive grounding or negative grounding on one terminal
-
Monthly maintenance charge
Electronic protection functions
-
Overcharge protection
-
Deep discharge protection
-
Reverse polarity protection of module, load and battery
-
Automatic electronic fuse
-
Short circuit protection of load and module
-
Overvoltage protection at module input
-
Open circuit protection without battery
-
Reverse current protection at night
-
Overtemperature and overload protection
-
Battery overvoltage shutdown
Displays
-
Multifunction LED display
-
Multi-coloured LED
-
4 LEDs show operating states ~ for operation, state of charge, fault messages
Options
-
Night light function pre-set in the factory or adjustable via Steca PA RC 100
-
Parameterisation of function values via Steca PA RC 100
Certificates
-
Compliant with European Standards (CE)
-
RoHS compliant
-
Developed in Germany
-
Manufactured according to ISO 9001 and ISO 14001

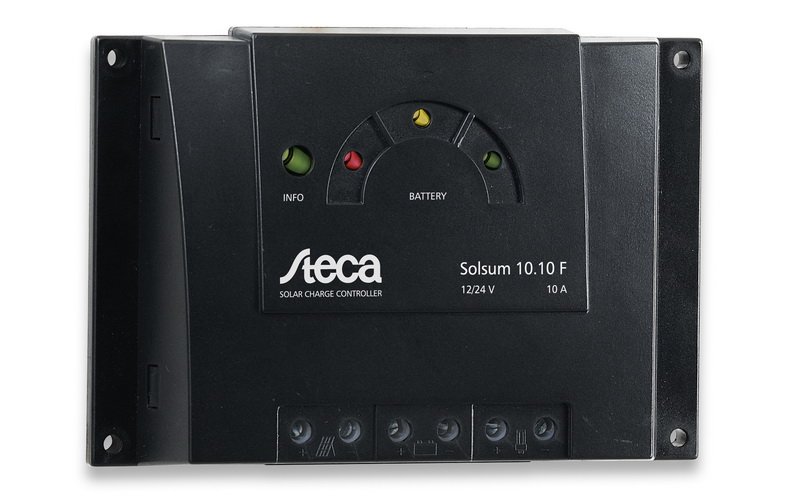

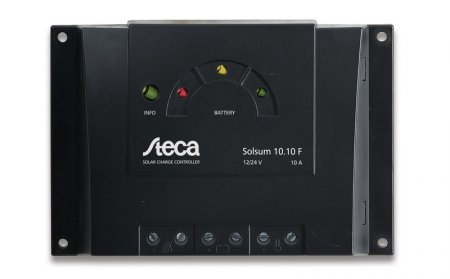

| Charger Steca Solsum 12/24 10A | |
| Characterisation of the operating performance | |
| System voltage | 12 V (24 V) |
| Own consumption | < 4 mA |
| DC input side | |
| Open circuit voltage solar module | < 47 V |
| Module current | 10 A |
| DC output side | |
| Load current | 10 A |
| End of charge voltage | 13.9 V (27.8 V) |
| Boost charge voltage | 14.4 V (28.8 V) |
| Reconnection voltage (LVR) | 12.4 V … 12.7 V (24.8 V … 25.4 V) |
| Deep discharge protection (LVD) | 11.2 V … 11.6 V (22.4 V … 23.2 V) |
| Operating conditions | |
| Ambient temperature | -25 °C … +50 °C |
| Fitting and construction | |
| Set battery type | gel (adjustable via Steca PA RC100) |
| Terminal (fine / single wire) | 4 mm2 / 6 mm2 - AWG 12 / 9 |
| Degree of protection | IP 32 |
| Dimensions (X x Y x Z) | 145 x 100 x 30 mm |
| Weight | approx. 150 g |
