power-one-trio-30-outd-tl-kwp

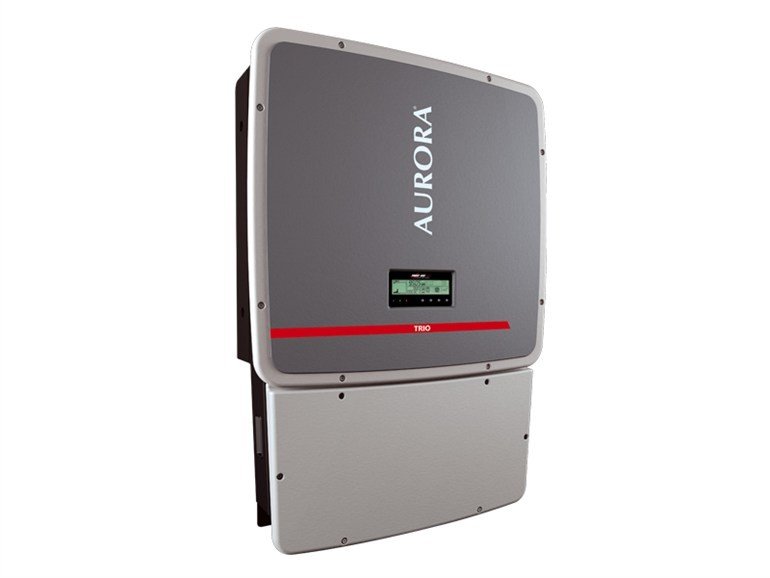

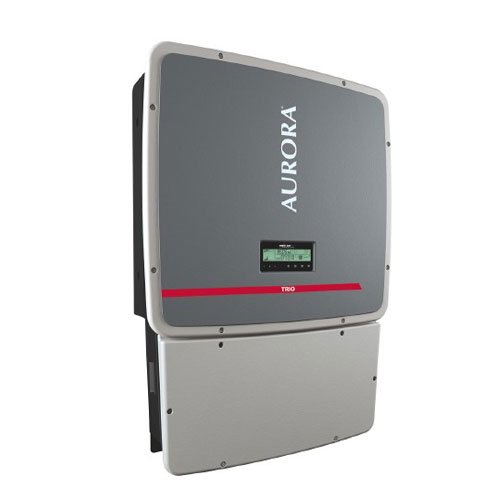

Power one TRIO-3.0 OUTD-TL Kwp

  • Single phase output

  • Transformerless topology

  • Each inverter is set on specific grid codes which can be selected in the field

  • Wide input range

  • High speed and precise MPPT algorithm for real time power tracking and improved energy harvesting

  • Dual input section with independent MPP tracking, allows optimal energy harvesting from two sub-arrays oriented in different directions



Power one TRIO-3.0 OUTD-TL Kwp
Number of Independent MPPT 2
AC Rated Power 3000 W
AC System Voltage 230V
DC Maximum Input Voltage 600V (Absolute Maximum)
DC Start-Up Input Voltage 200V (adjustable range 120-350 V)
DC Operating Input Voltage 0.7 x V (start) up to 580V
DC Rated Input Power 3120 W
DC Maximum Input Power 2000 W (each MPPT)
DC Input Voltage Range 160-530V (each MPPT)
DC Maximum Input Current 20A (10A each MPPT)
DC Max Input Isc 12.5A (each MPPT)
AC Grid Connection Type Single Phase
AC Rated Power 3000 W
AC Maximum Output Power 3300 W
AC Rated Grid Voltage 230V
AC Maximum Output Current 14.5A
AC Maximum Overcurrent Protection 16A
Stand-by Consumption <8W
Cooling Natural
Dimensions 617x325x222mm, 17.5 kg
